Complete Binary Search Algorithm
Binary Search Algorithm:
ASSUMPTION:
• Let a base i 1 ≤ i ≤ n be a list of elements which are sorted in non-decreasing order.
PROBLEM:
• Consider the problem of determining whether a given element x is present in the list.
• In case x is present, we are to determine a value j such that a base j = x.
• If x is not in the list then j is to be set to zero.
Process of Binary Search Using Divide and Conquer:
• Divide-and conquer suggests breaking up any instance
• I = (n, a 1, ... , a n, x) of this search problem into sub instances.
• One possibility is to pick an index k and obtain three instances:
• I1 = (k - 1, a 1, ••• , ak-1, x),
• I2 = (1, a k, x), and
• I3 = (n - k, a k+1 ,••••, an, x).
Algorithm of Binary Search:
Algorithm Binary Search(a,i,l,x)
{
if(l=i) then // small(p) only one element
{
if(x==a[i]) then
return i;
else
return 0;
}
else
mid= (i+l)/2
If(x=a[mid]) then return mid;
Elseif (x<a[mid]) then
return BinarySearch(a,i,mid-1,x)
Else
return BinarySearch(a,mid+1,l,x)
}
}

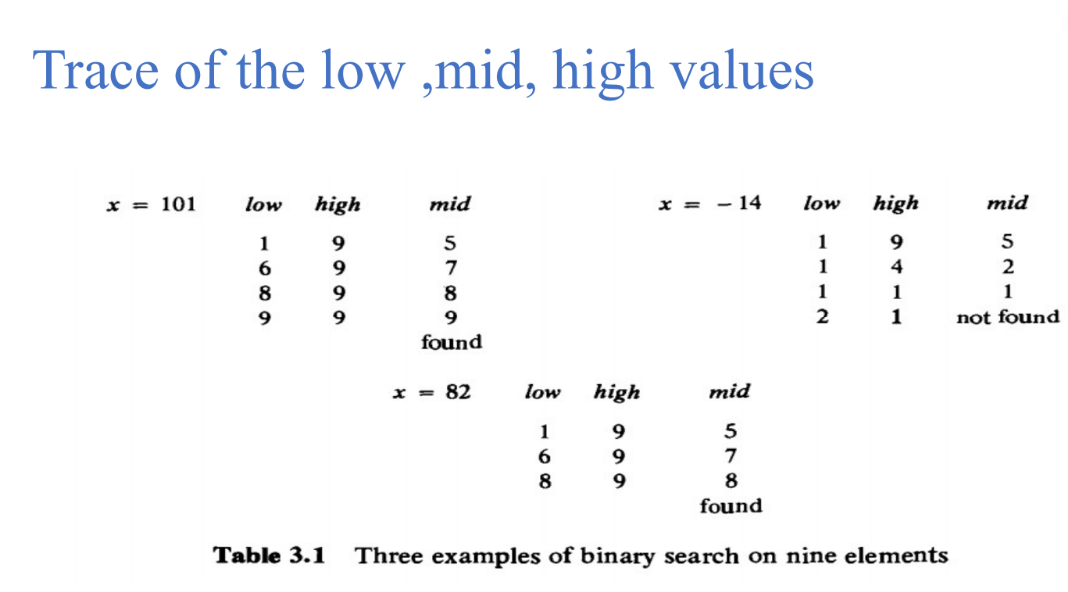

Example:
Example -2:
Let us select the nine entries,
-15, -6, 0, 7, 9, 23, 54, 82, 101
place them in A(1:9), and simulate the steps that BINARYSEARCH
goes through as it searches for different values of x.
Only the variables low, high and mid need to be traced as we simulate
the algorithm.
We shall try the following values for x: 101, -14, and 82 for two
successful searches and one unsuccessful search.
Complexity of Binary Search
• Theorem 1:
• If n is in the range [2k-1, 2k) then BINARYSEARCH makes at most k element comparisons for a successful search and either k - 1 or k comparisons for an unsuccessful search. (In other words the time for a successful search is O(log n) and for an unsuccessful search it is Θ (log n)).
• Proof for Theorem 1:

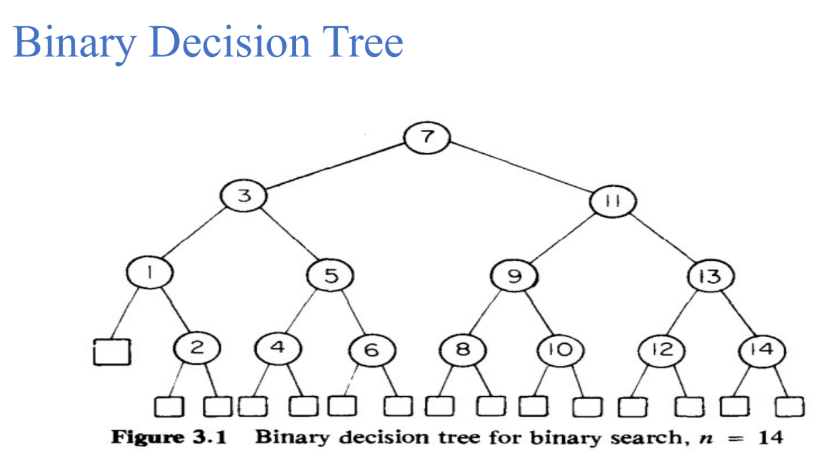

• Proof: Consider the binary decision tree describing the action of BINARYSEARCH on n elements.
• All successful searches end at a circular node while all unsuccessful searches end at a square node. If 2^k-1 ≤ n < 2^k then all circular nodes are at levels 1, 2, ... , k while all square nodes are at levels k and k+ 1 (note that the root is at level 1).
• The number of element comparisons needed to terminate at a circular
node on level i is i while the number of element comparisons needed
to terminate at a square node at level i is only i - 1.
Time complexity of Binary Search:
• Let T(n) be the number of comparisons in worst-case in an array of n elements.
• Recurrence relation for binary search is
Complexity of Binary search O(logn)
T(n) = [T(n/2)+1]
= [T(n/4)+1]+1
= [T(n/8)+1]+2
*
*
T(n)=T(n/2^i)+i., for any (log n) ≥i ≥ 1.
Assume n/2^i=1 Therefore n=2^i and i=(log n)
Thus, T(n) = T(1) + log n
= 0+log n
= O(log n)

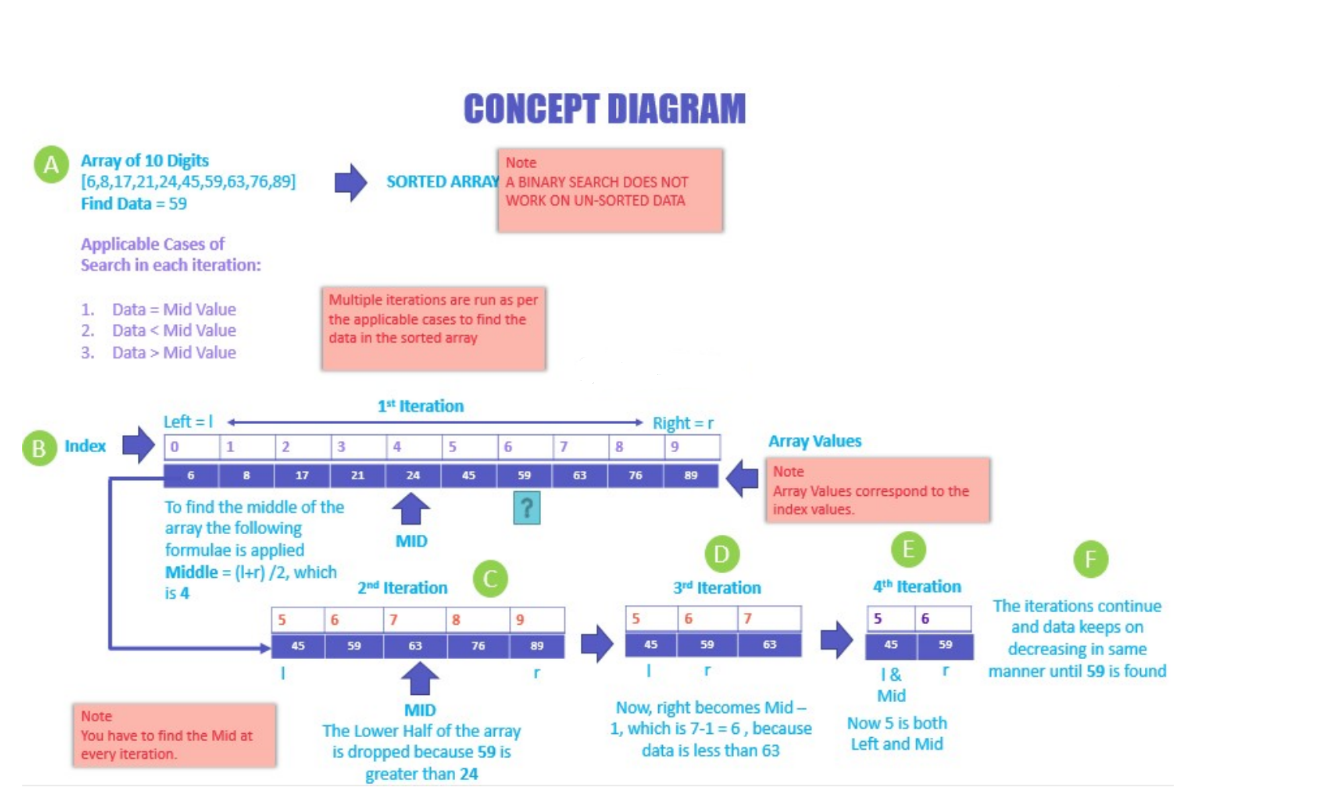

Approach:
We basically ignore half of the elements just after one comparison.
• Compare x with the middle element. If x matches with middle element, we return the mid index.
• Else If x is greater than the mid element, then x can only lie in right half subarray after the mid element. So we recur for right half.
• Else (x is smaller) recur for the left half.
Program:
Recursive implementation of Binary Search:
// Java implementation of recursive Binary Search
class BinarySearch {
// Returns index of x if it is present in arr[l..
// r], else return -1
int binarySearch(int arr[], int l, int r, int x)
{
if (r >= l) {
int mid = l + (r - l) / 2;
// If the element is present at the
// middle itself
if (arr[mid] == x)
return mid;
// If element is smaller than mid, then
// it can only be present in left subarray
if (arr[mid] > x)
return binarySearch(arr, l, mid - 1, x);
// Else the element can only be present
// in right subarray
return binarySearch(arr, mid + 1, r, x);
}
// We reach here when element is not present
// in array
return -1;
}
// Driver method to test above
public static void main(String args[])
{
BinarySearch ob = new BinarySearch();
int arr[] = { 2, 3, 4, 10, 40 };
int n = arr.length;
int x = 10;
int result = ob.binarySearch(arr, 0, n - 1, x);
if (result == -1)
System.out.println("Element not present");
else
System.out.println("Element found at index " + result);
}
}
Iterative implementation of Binary Search:
// Java implementation of iterative Binary Search
class BinarySearch {
// Returns index of x if it is present in arr[],
// else return -1
int binarySearch(int arr[], int x)
{
int l = 0, r = arr.length - 1;
while (l <= r) {
int m = l + (r - l) / 2;
// Check if x is present at mid
if (arr[m] == x)
return m;
// If x greater, ignore left half
if (arr[m] < x)
l = m + 1;
// If x is smaller, ignore right half
else
r = m - 1;
}
// if we reach here, then element was
// not present
return -1;
}
// Driver method to test above
public static void main(String args[])
{
BinarySearch ob = new BinarySearch();
int arr[] = { 2, 3, 4, 10, 40 };
int n = arr.length;
int x = 10;
int result = ob.binarySearch(arr, x);
if (result == -1)
System.out.println("Element not present");
else
System.out.println("Element found at " + "index " + result);
}
}
Time Complexity:
• The time complexity of Binary Search can be written as
T(n) = T(n/2) + c
• The above recurrence can be solved either using Recurrence T ree method or Master method. It falls in case II of Master Method and solution of the recurrence is Theta(Logn).
Auxiliary Space: O(1) in case of iterative implementation. In case of recursive implementation, O(log n) recursion call stack space.
I think from my explanation you got a basic idea about Binary Search 🙂.
Time complexity Graph:
